P7M10

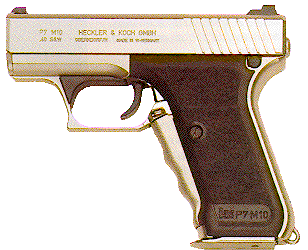

Heckler & Koch P7M10
Model
Finish
Caliber(s)
Mag. Cap.
Barrel Length
Overall Length
Height Width Across Grips
Weight w/o Magazine
Sight Radius
P7M10
Blue, Nickel
.40 S&W
10
4.13"
6.90"
5.68"
1.30"
2.69 lbs.
5.83"
The P7M10 shares recievers with the P7M13, but fires a .400 caliber bullet  from the .40S&W cartridge, requiring a 12.64oz heavier slide.  This results in a overall height identical to the 1911, yet retains the low muzzel flip, light recoil, and sizzling slide velocities of the 9mm P7's.

It has a regular (lands & grooves) barrel, and has a double-stack Magazine that holds 10 rounds.  This gives it a wider grip similar to the P7M13.  At 2.69 lbs., it is considerably heavier than the rest of the P7's.








The P7M10 has a gas-retarded action.  It is no longer in production.



Operator's Manual for P7 Pistols (English)

Heckler & Koch P7M13 Technical Manual for Dealer / Factory Maintenance (Some parts relevant to the P7M10)
