Specifications for the P7 Family

Model
Finish
Caliber(s)
Mag. Cap.
Barrel Length
Overall Length
Height Width Across Grips
Weight w/o Magazine
Weight with Empty Magazine
Sight Radius
P7 (PSP)
Blue
9 x 19mm
8
4.13"
6.54"
 5.00"
1.14"
1.73 lbs.
1.88 lbs.
5.83"
P7M8
Blue, Nickel, Two-Tone
9 x 19mm
8
4.13"
6.73"
5.04"
1.14"
1.75 lbs
-
5.83"
P7M13
Blue,
Nickel
9 x 19 mm
13
4.13"
6.90"
5.30"
1.30"
1.87 lbs.
-
5.83"
P7M10
Blue, Nickel
.40 S&W
10
4.13"
6.90"
5.68"
1.30"
2.69 lbs.
-
5.83"
P7K3
Blue
.22 LR
.32 ACP
.380 ACP
8
3.8"
6.30"
4.92"
1.14"
1.71 lbs.
1.67 lbs.
1.65 lbs.
1.84 lbs.
1.80 lbs.
1.77 lbs.
5.47"
P7M7
Blue,
Nickle
.45 ACP
7
?
?
?
?
?
?
?
All specifications are from H&K Owner's manuals, also available at this site.  They also contain other specifications for some guns, such as rifling twist length, etc.  If you think any of these are wrong, please write H&K and not me.


Click here for information on what the markings on the gun mean, including the date code.



Part Diagrams

Below are link for part diagrams (schematics) for each gun, and a parts list for each.  These are from the User's Manuals:

P7M8 Parts Diagram

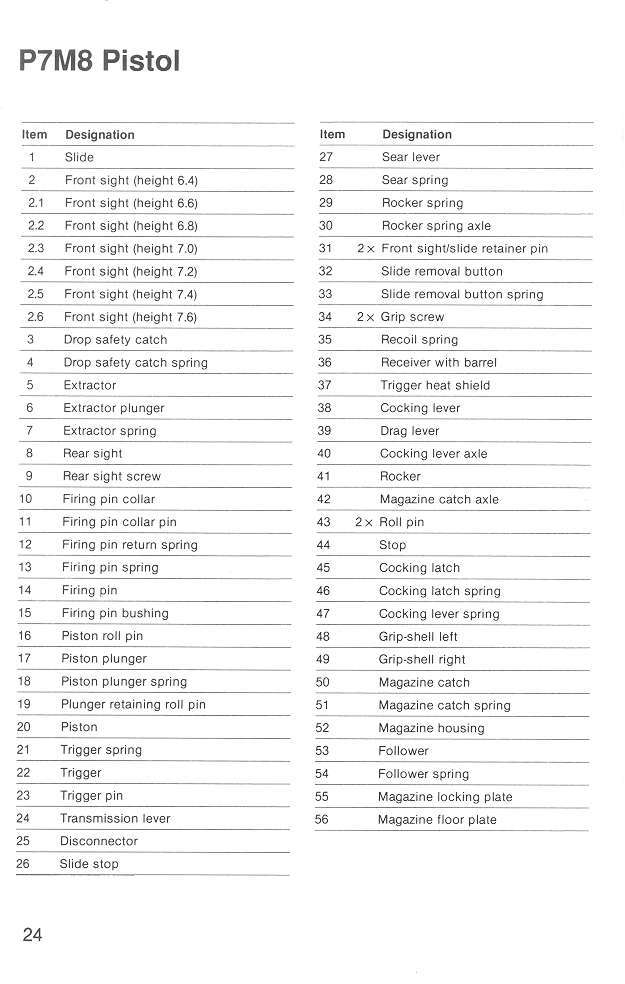

P7M8 Parts List

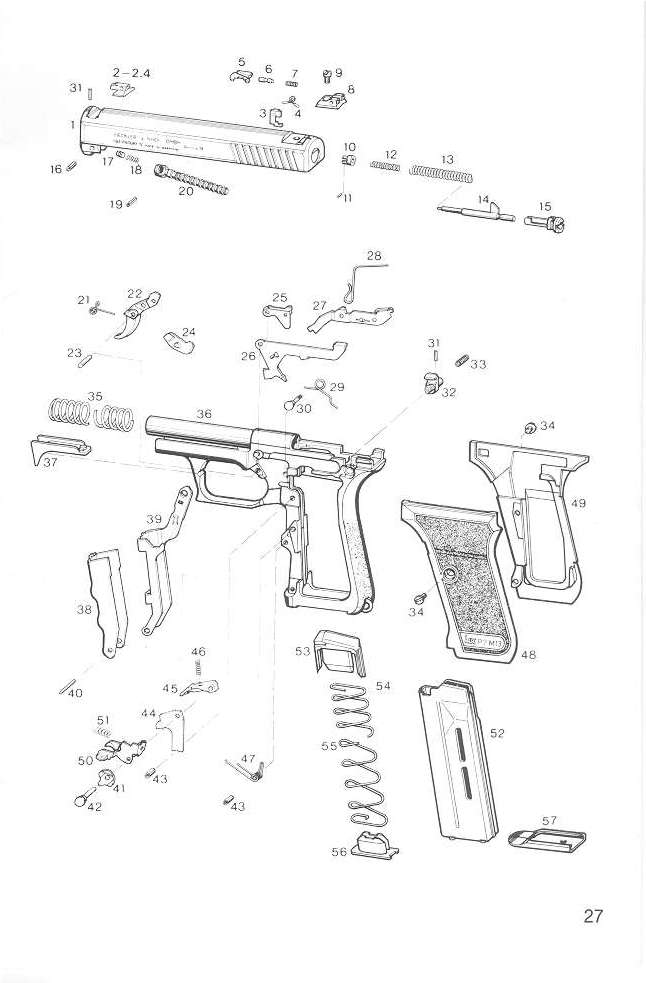

P7M10/P7M13 Parts Diagram

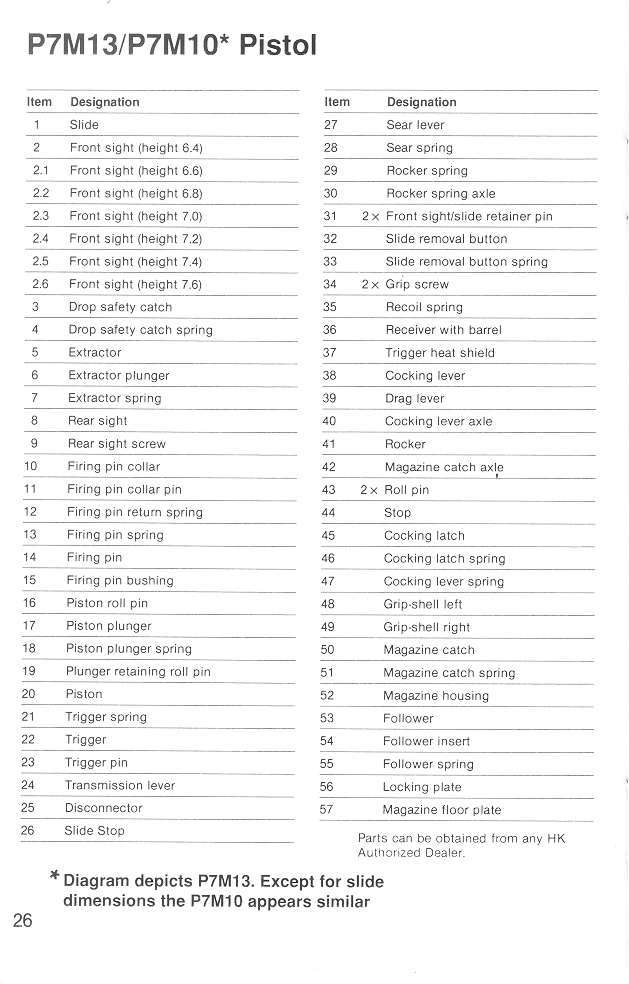

P7M10/P7M13 Parts List

.
